Material transport and machine loading in production lines.
Modular robot system
The HEROS from Innok Robotics is an autonomous mobile robot (AMR) developed for a wide range of applications in industry, logistics, agriculture and research. Thanks to its modular design and robust construction, the HEROS can be customised to meet specific requirements. Whether for the transport of heavy loads, the integration of special modules or use in harsh environments - the HEROS is the ideal solution for demanding automation tasks.
Modularity and adaptability
The HEROS is one of the most versatile robot platforms on the international market. With various configuration options - such as 3- or 4-wheel versions - and a wide selection of add-on modules (e.g. robot arm for gripping), it can be customised to meet individual requirements.
Robust and powerful
Thanks to its sturdy construction and high-quality materials, the HEROS is particularly suitable for use in demanding environments. With a maximum load of 70 to 700 kg (depending on the configuration), it offers the necessary power for heavy-duty tasks and transports materials fully automatically.
Autonomous navigation
Equipped with the latest navigation technology and software, the HEROS can navigate precisely, intelligently and safely through dynamic environments. It uses advanced sensors. These digitally and reliably recognise obstacles and people, ensuring collision-free and efficient operation. No special markings or conversions are required for this.

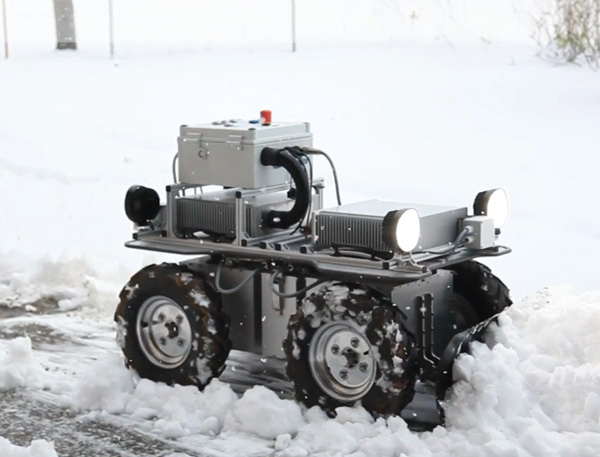

The picture shows the HEROS with attachments for autonomous snow clearing.
Material transport and machine loading in production lines.
HEROS provides support for transport tasks or the integration of special modules such as spraying systems.
Efficient movement of goods and materials in warehouses and distribution centres.
Platform for the integration of sensors, cameras or specific research modules.
1. Maximum flexibility
The HEROS can be flexibly configured for a wide range of applications thanks to the quick attachment of various modules. This reduces the need for specialised machines and enables companies to cover a wide range of innovative tasks with a single system.
2. Increased efficiency
By automating recurring tasks, the HEROS increases productivity and reduces the workload of employees. Its autonomous navigation ensures a smooth material flow and optimises work processes. Humans and robots work together highly efficiently.
3. Sustainability and cost savings
With its customisable platform structure and durable design, the HEROS is a sustainable investment. Companies incur lower operating costs as the need for additional hardware is reduced.
Load capacity: 70 - 700 kg depending on configuration.
Navigation: Autonomous with the latest sensor technology.
Configurations: 3 or 4 wheels can be fitted.
Area of application: Suitable for indoor and outdoor applications.
Modularity: Customisable to specific applications thanks to a variety of add-on modules.
The picture shows the HEROS as an autonomous firewood transporter.
Weight
Dimensions
Towed load
Ground clearance
Maximum speed
Battery life
Charging time
Motor
Protection class
Environment
70 to 140 kg
920 x 720 x 440 mm
70 to 700 kg
95 to 195 mm
0.9 m/s
up to 16 hrs
2 hrs (20 to 80%)
2WD: 800 W | 4WD: 1600 W
IP65 | Add-on: IP66/67
Indoors & Outdoors
Robots for indoor and outdoor use
Compact transport robot for trailer loads up to 700 kg. With a tight turning circle and automatic trailer coupling.
to the INDUROS robot
The irrigation robot independently waters green areas, flower beds, graves and parks - even overnight to save water.
to the RAINOS robot
Inspection robots for autonomous inspection drives over long distances or in hazardous environments and for wireless transmission of video and image material.
to the INSPECTOS robot
With the HEROS, Innok Robotics offers an exceptionally versatile and highly customisable robot platform that provides companies with a customer-specific, effective solution for the automation of complex tasks. Whether for industrial applications, agricultural support or research - the HEROS integrates flexibility, robustness and state-of-the-art technology to make processes future-proof.

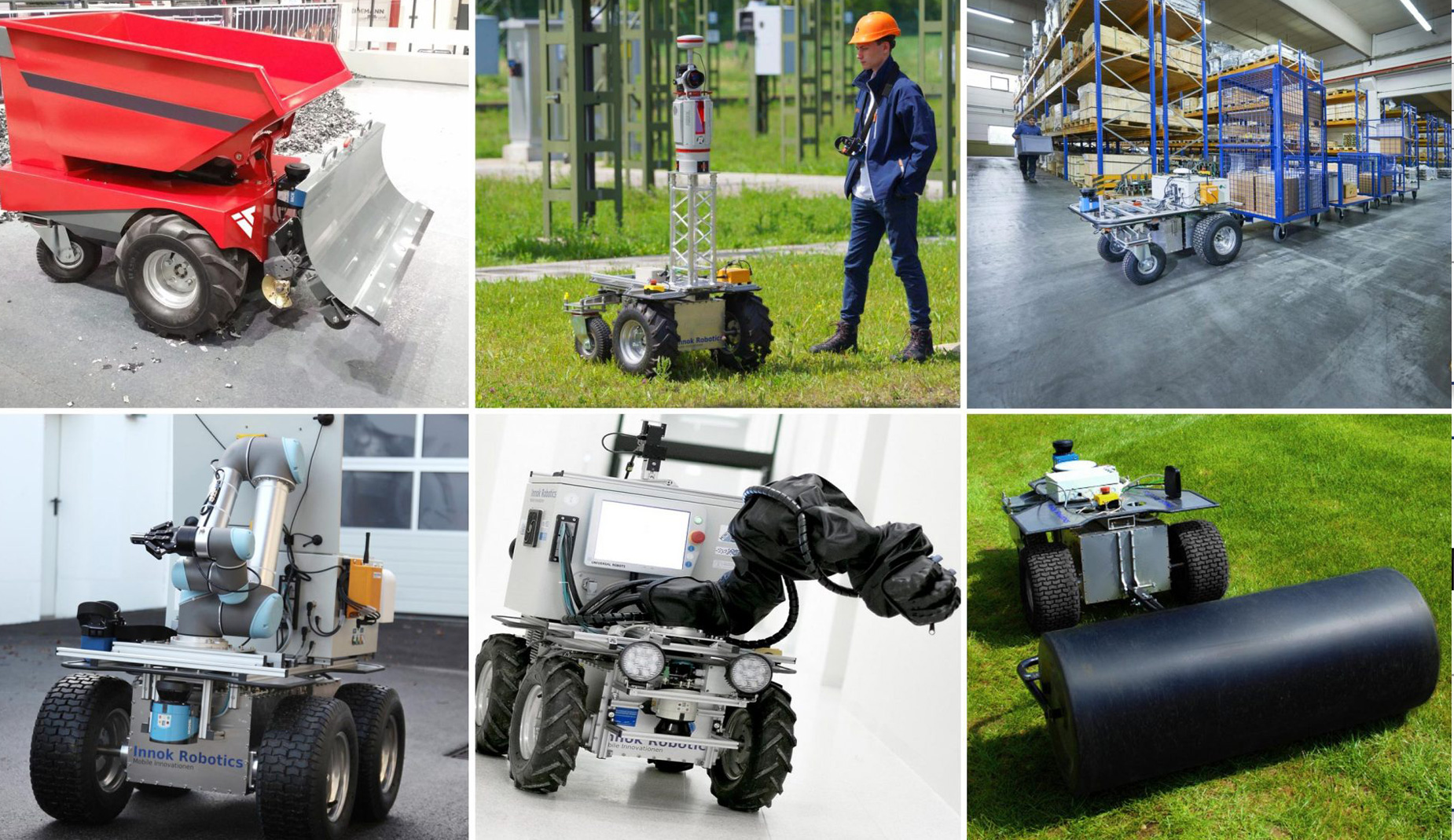

The picture shows multiple customisations of the HEROS for all sorts of tasks.
Contact us today to find out more about the HEROS and how it can revolutionise your automation!
