Automated inspection of machines, pipes and electrical systems.
Autonomous inspection robot
The INSPECTOS was specially developed for carrying out inspection tasks in industrial and plant areas. Thanks to its advanced sensor technology, including high-resolution cameras and laser scanners, the autonomous mobile robot (AMR) can precisely detect complex structures and analyse them in real time. It can be operated both indoors and outdoors. The data collected is processed securely and realises a highly efficient evaluation of system statuses so that potential risks can be identified at an early stage.
The INSPECTOS offers an impressive combination of technical innovation and practicality. The most important features of the inspection robot include
Autonomous navigation
Depending on the requirements, the robot independently finds the optimum route through complex environments and systems and masters obstacles with ease.
State-of-the-art sensor technology
Equipped with laser scanners, cameras and other sensors, the INSPECTOS delivers digital and precise real-time data.
Robust design
Developed for use in demanding and potentially hazardous environments, the robot can withstand extreme conditions while travelling.
Modularity
Its platform can be flexibly expanded to integrate additional functions and different tasks.
Easy integration
Thanks to its user-friendly software and interfaces, the INSPECTOS can be seamlessly integrated into existing work processes and quickly performs regular inspections.

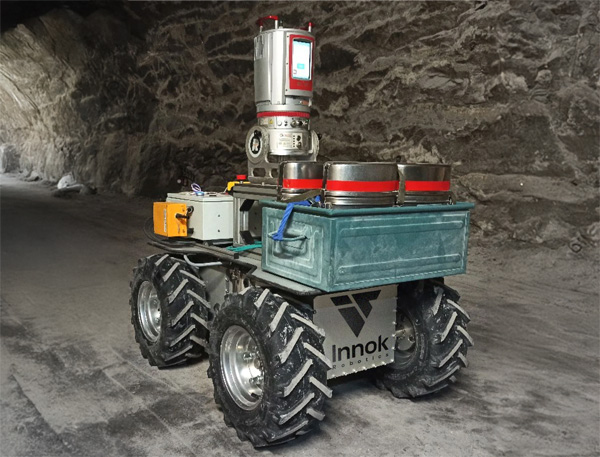

The picture shows the INSPECTOS examining a mining tunnel.
Automated inspection of machines, pipes and electrical systems.
For example, detection of damage, leaks or temperature deviations.
Provision of precise data for preventive maintenance.
The use of INSPECTOS offers companies numerous advantages:
Equipped with state-of-the-art navigation software, the INSPECTOS moves effortlessly through challenging environments. Its ability to recognise and avoid obstacles autonomously makes it an indispensable helper in industrial environments with limited access. Thanks to its robust design, the robot is also suitable for use in harsh environments, such as chemical plants, power stations or large-scale production facilities.
The picture shows the INSPECTOS monitoring a substation.
Weight
Dimensions
Maximum Speed
Battery life
Charging time
Motor
Protection class
Zoom
Camera
Surrounding temperature
Environment
125 kg
1150 x 750 x 940 mm
0.9 m/s
up to 16 hrs
2 hrs (20 to 80%)
800 W
IP65
10-fach optical, 12-fach digital
1080p, 360° endless, 0° bis 90° incline
–10 °C to +45 °C
Indoors and Outdoors
Robots for indoor and outdoor use
Compact transport robot for trailer loads up to 700 kg. With a tight turning circle and automatic trailer coupling.
to the INDUROS robot
The manoeuvrable HEROS robot is suitable for a wide range of transport tasks. It can be easily modified using various modules.
to the HEROS robot
The irrigation robot independently waters green areas, flower beds, graves and parks - even overnight to save water.
to the RAINOS robot
INSPECTOS by Innok Robotics
INSPECTOS is the key to optimising your inspection and safety processes. Every piece of information collected is transmitted wirelessly and encrypted to the control centre. With its advanced technology, flexible application options and enormous increase in efficiency, it is the solution for companies that want to modernise their work processes and remain competitive.

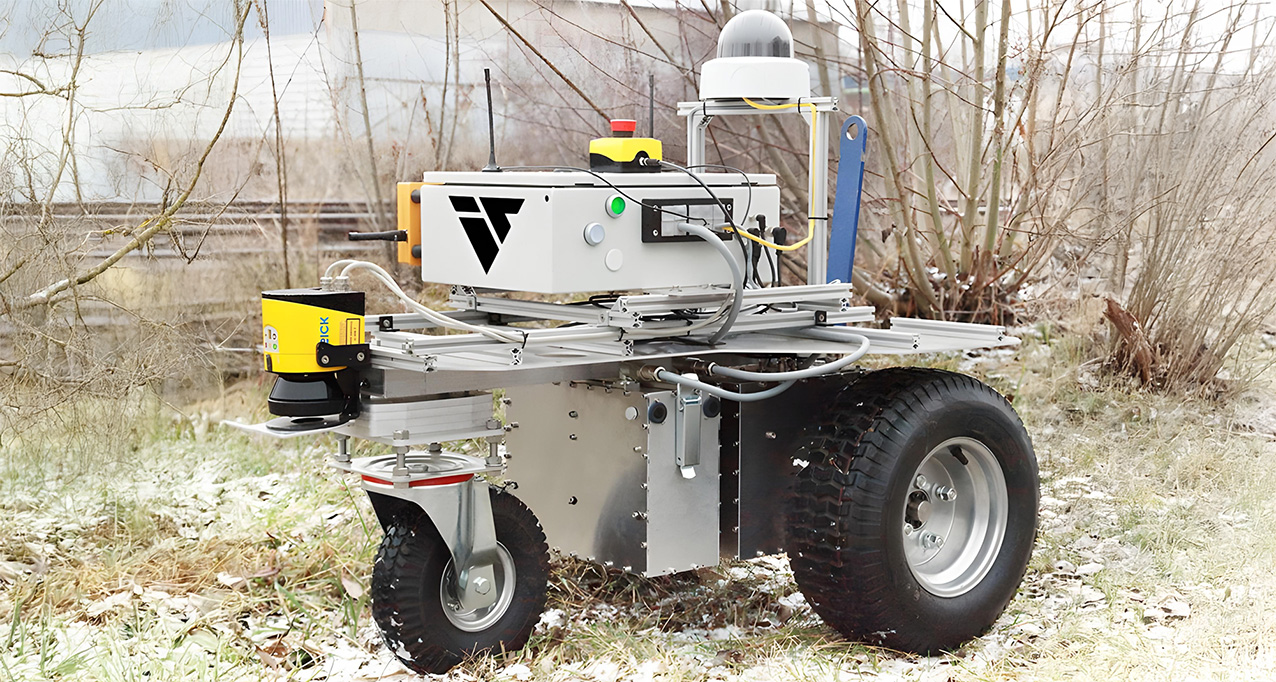

The picture shows a control drive in a rough outdoor area.
