The autonomous watering robot optimises the water supply through needs-based irrigation that is individually adapted to different types of plants. For example, the robot memorises the amount of water required for all graves.
Autonomous watering robot
The RAINOS from Innok Robotics GmbH is the innovative development for precise, automated irrigation for parks, green spaces, cemeteries and in modern agriculture. With its advanced technology, robust design and versatile application options, the autonomous mobile robot (AMR) helps to increase the efficiency of plant care, save resources and promote sustainable cultivation.
The RAINOS offers a variety of innovative functions that are specially tailored to irrigation:

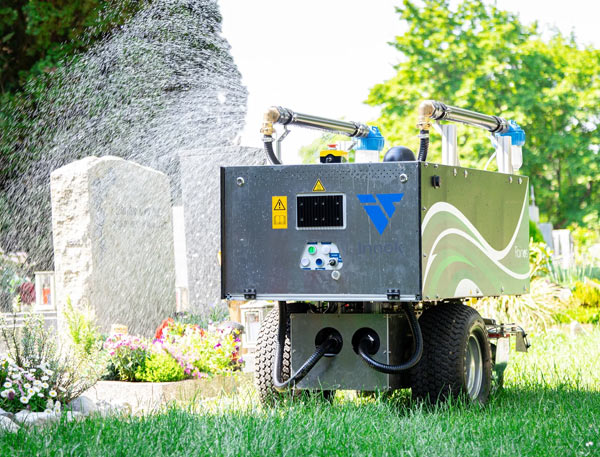

The picture shows the RAINOS working autonomously on unpaved surfaces.
The autonomous watering robot optimises the water supply through needs-based irrigation that is individually adapted to different types of plants. For example, the robot memorises the amount of water required for all graves.
Thanks to its autonomous navigation and automatic refuelling function, the RAINOS is perfect for use in extensive fields, complex agricultural operations and winding cemeteries.
Thanks to its day and night use and its robust design, the RAINOS is also suitable for difficult terrain and extreme weather conditions. This makes it indispensable for sustainable farming in challenging conditions.
The use of RAINOS offers numerous advantages for the green sector:
With its refuelling system, the RAINOS makes watering a seamless process. The robot independently returns to the refuelling station when the water tank is empty and then continues its work without human intervention. This fully automatic system saves time and significantly reduces the amount of labour required.
The picture shows the RAINOS during automatic refuelling at a filling station hidden behind hedges.
Weight
Dimensions
Maximum Speed
Tank volume
Filling station
Ground clearance
Battery life
Charging time
Motor
Protection class
Wireless networks
Environment
165 kg
125 x 70 x 110 cm
0.9 m/s
215 l (Robot) / 300 l (Filling station)
GEKA connection, full tank in under 1 minute, solar power
10 cm
up to 16 hrs
2 hrs (20 to 80%)
800 W
IP65
WLAN or LTE
Outdoors
Robots for indoor and outdoor use
The manoeuvrable HEROS robot is suitable for a wide range of transport tasks. It can be easily modified using various modules.
to the HEROS robot
Compact transport robot for trailer loads up to 700 kg. With a tight turning circle and automatic trailer coupling.
to the INDUROS robot
Inspection robots for autonomous inspection drives over long distances or in hazardous environments and for wireless transmission of video and image material.
to the INSPECTOS robot

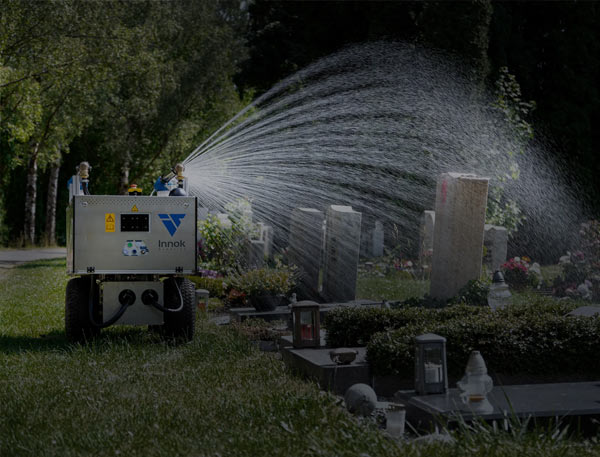

The RAINOS is designed for 24/7 use. Thanks to its robust design and reliable obstacle avoidance technology, it can also be used independently at night, allowing irrigation to be flexibly adapted to the needs of plants and the availability of resources. Night-time irrigation also reduces evaporation losses and increases efficiency. The picture shows the RAINOS watering autonomously at night.
The RAINOS is the future of professional and precise irrigation. With its innovative technology, its ability to dose water individually and its autonomous functions, it helps farmers and gardeners to work more efficiently, sustainably and successfully.
