MiR Hook 250

files/dateien/images/Partner%20Logos/Favicon_RGB.png
files/dateien/images/Produkte/Mobile%20Industrial%20Robots/MiR_Hook_250_Profil.png

MiR Hook 250: Continue using existing wagon fleet

Key-Facts

The MiR Hook 250 is the ideal solution for companies that want to automate and optimize their internal transport processes. This innovative robot attachment for the MiR250 was specially developed to autonomously identify and connect transport trolleys and bring them precisely to the desired destination. Thanks to its patented technology and intelligent software, the MiR Hook 250 is suitable for a wide range of applications in production, logistics and healthcare.

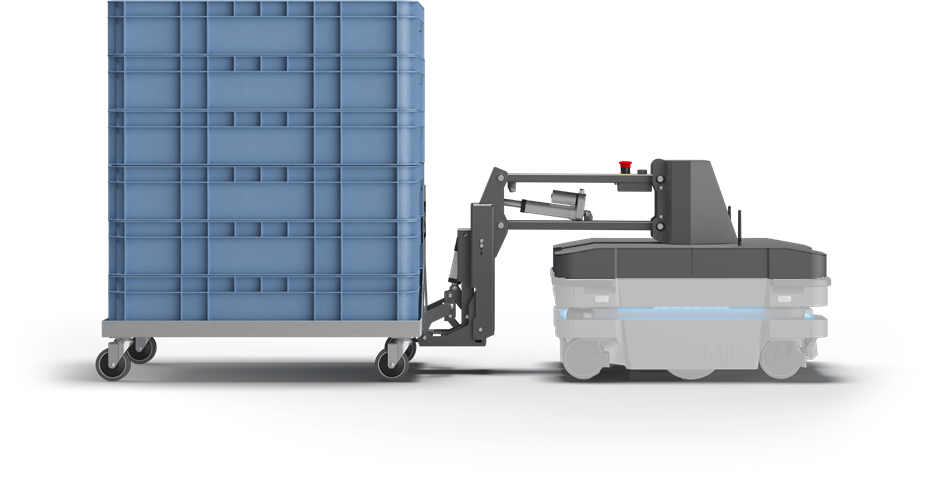

files/dateien/images/Produkte/Mobile%20Industrial%20Robots/MiR_Hook_250_Trays.png

The main benefits at a glance

  • Automated transport: Complete automation of the transport process, from picking up to setting down the trolley
  • Advanced navigation technology: Safe driving even in challenging environments with people and obstacles
  • High pulling capacity: Easily handles pulling loads of up to 500 kg
  • Easy integration: Compatible with existing transport trolleys thanks to simple April tag detection
  • Flexibly expandable: Can be integrated into existing robot fleets and easily converted for changing requirements
  • User-friendly control: Intuitive operation via mobile devices with WLAN or Bluetooth connection

AMR solution for the effective transport of trolleys and rolling racks

Versatility and flexibility

The MiR Hook 250 recognises transport trolleys via so-called April tags and can easily control and pull trolleys of different heights and weights - up to a pulling load of 500 kg. This means that existing transport trolleys can continue to be used without any problems, without the need for conversion. Simply attach the April tag and the transport trolley is safely identified by the robot and transported independently. This compatibility ensures maximum flexibility and cost efficiency, as no new trolleys need to be purchased.

Maximum efficiency and productivity

With the advanced MiR navigation software and the robust MiR250 robot base, the MiR Hook 250 moves with extreme precision through your premises, navigating safely around obstacles and even travelling up ramps if required. Its modern software enables simple control via smartphone, tablet or PC, allowing you to flexibly adapt the robot's transport missions at any time. Thanks to its ability to pull loads of up to 500 kg, the MiR Hook 250 is ideal for transporting heavy and unwieldy goods, for example in manufacturing or hospitals (e.g. when transporting laundry trolleys).

Autonomous transport made easy

Whether you want to integrate the MiR Hook 250 into existing processes or a complete robot fleet - this robot is equipped for all requirements. You can change the missions in real time and the robot adapts immediately to new conditions. Using cameras, integrated sensors and sophisticated software, the MiR Hook 250 manoeuvres safely through your environment and reaches its destination without human intervention.

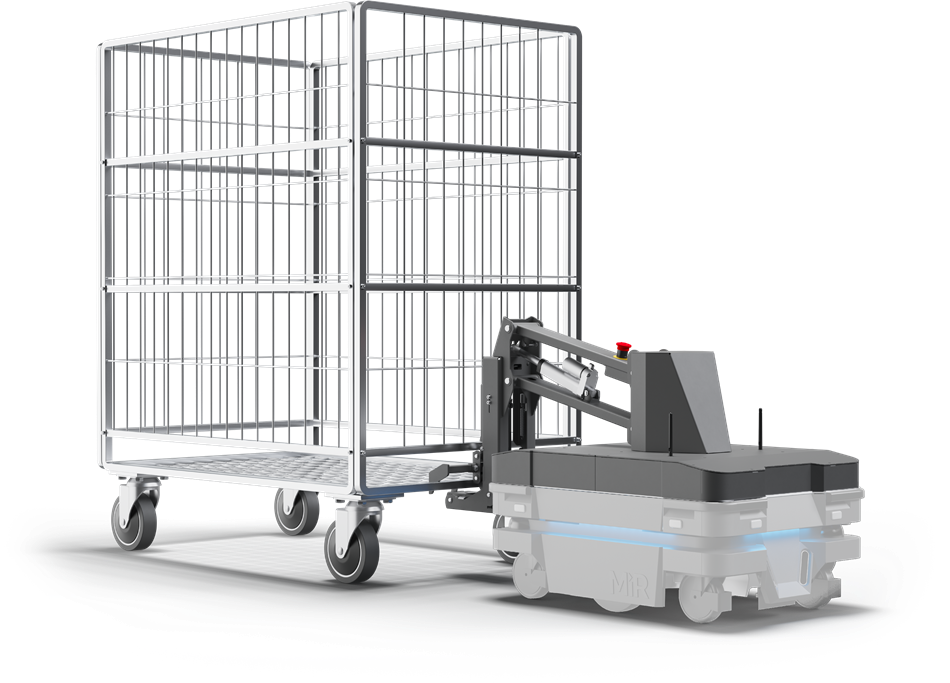

files/dateien/images/Produkte/Mobile%20Industrial%20Robots/MiR_Hook_250_mit_Wagen.png

Efficient and safe navigation in busy environments

The MiR Hook 250 enables effortless integration of your transport trolleys. Simply enter the dimensions into the software and the robot takes care of the rest. Thanks to modern sensors, camera technology and intelligent control, it moves precisely through its environment, avoids obstacles , navigates safely around people and even manages ramps . A special highlight: the robot is compatible with almost all trolleys, regardless of their individual dimensions.





Contact us now

Technical specifications

Weight

Grip height

Payload

Charging cycles

Maximum speed

Turning radius

Continuous runtime

Environment

Protection class

Housing material

3D camera

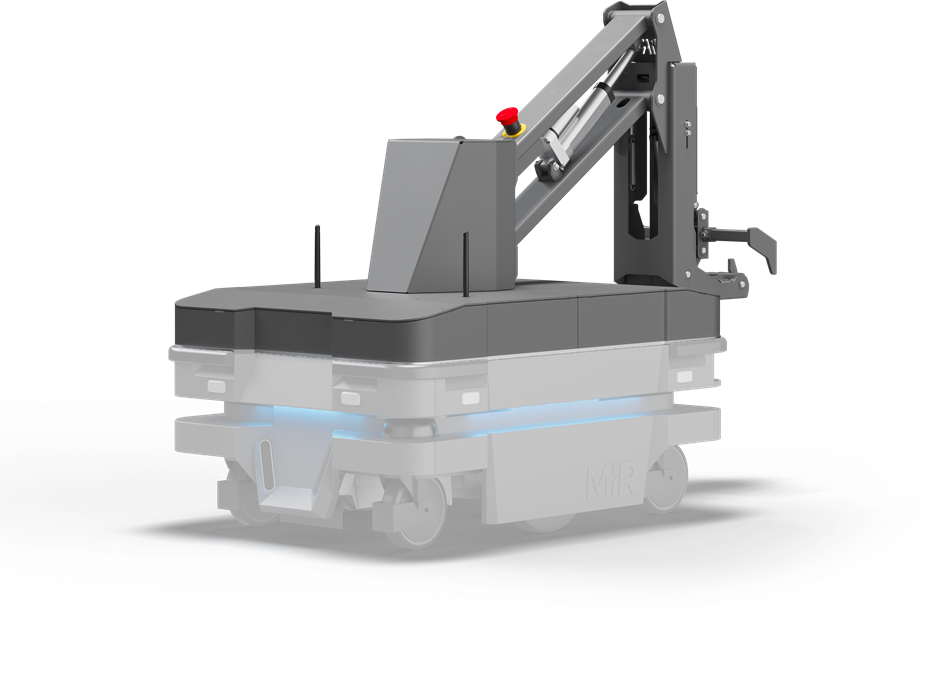

files/dateien/images/Produkte/Mobile%20Industrial%20Robots/MiR_Hook_250.png

MiR Hook 250

188 kg

80 mm - 350 mm

500 kg

min. 3,000

2.0 m/s

Turnaround in place

14 hours

Indoor area

IP21

Aluminium

1 Intel RealSense™ D435
