AMR with flexible robot arm
The MiR Mobile Cobot ER-Flex is an innovative combination of an autonomous mobile robot (AMR) and a collaborative robotic arm (cobot). This system opens up completely new possibilities in automation by combining flexibility, mobility and precision in one device. Ideal for companies that want to automate material handling, assembly or quality inspections without compromising on adaptability and safety.
The MiR Mobile Cobot ER-Flex is based on the robust platform of an AMR from Mobile Industrial Robots (e.g. MiR250) and combines this with a collaborative robot arm. This mobile unit navigates safely and autonomously through dynamic environments and performs precise tasks at various workstations with a system. By integrating the robot arm, the ER-Flex becomes a mobile all-round solution that efficiently masters a wide range of automation tasks. Main features of the MiR Mobile Cobot ER-Flex:
Autonomous navigation: Thanks to advanced sensors, the ER-Flex detects obstacles and people to safely navigate through busy work environments.
Flexible application options: the robot can perform various tasks, such as loading machines, picking goods or quality control.
Easily switch between applications: the modular design of the ER-Flex makes it quick to adapt to new requirements.
Flexible assembly work or machine loading at different locations.
Automated picking and transport of goods in warehouses.
Mobility enables testing processes directly at different stations.
Assistance with packing or sorting articles.
The MiR Mobile Cobot ER-Flex is compatible with the UR5e, UR10e and UR16e collaborative robot arms from Universal Robots. These robot arms extend the capabilities of the ER-Flex and enable precise customisation to the specific requirements of your applications.

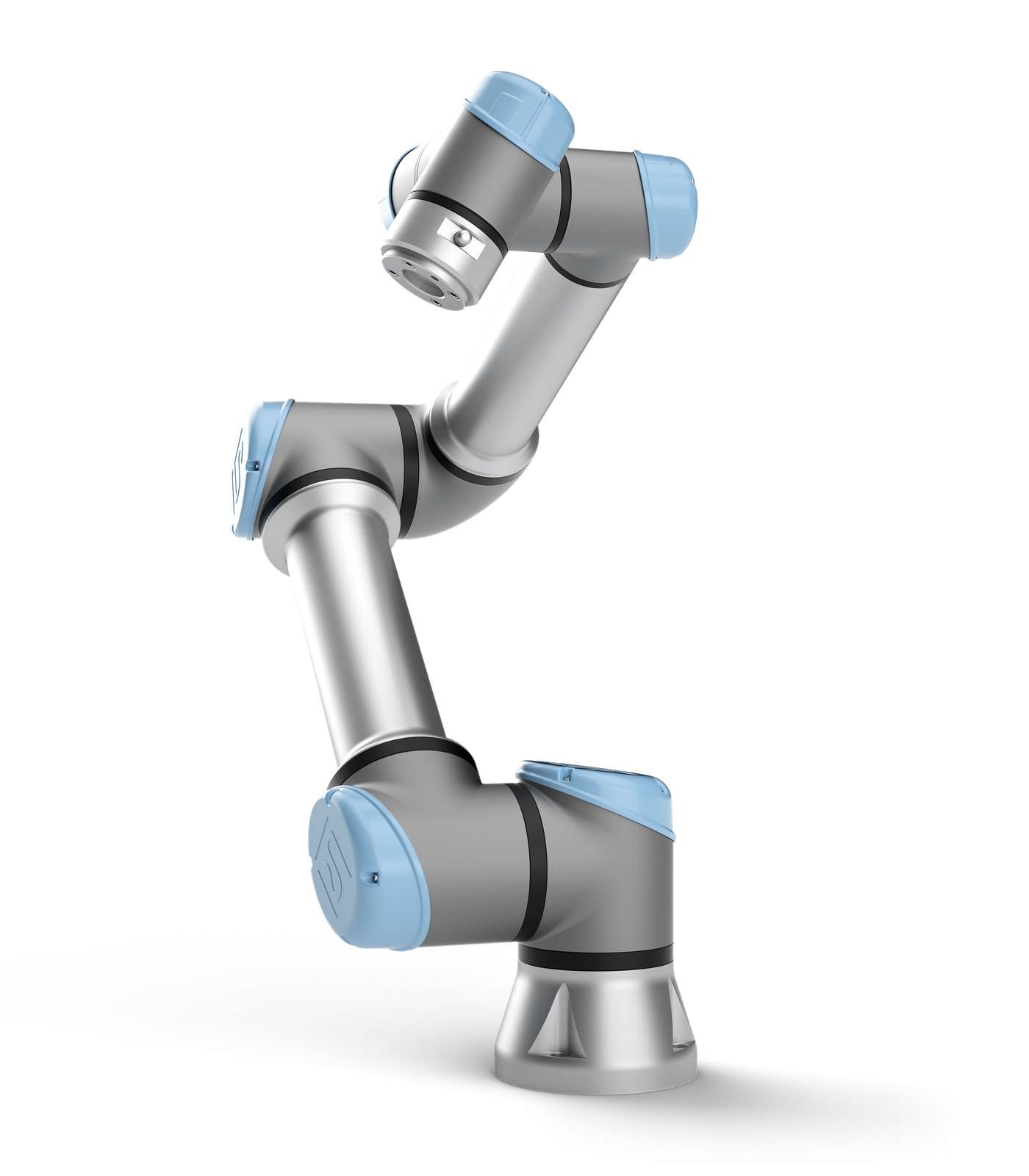

With a reach of 850 mm and a payload of 5 kg, this cobot is ideal for smaller tasks such as pick-and-place applications or machine loading.

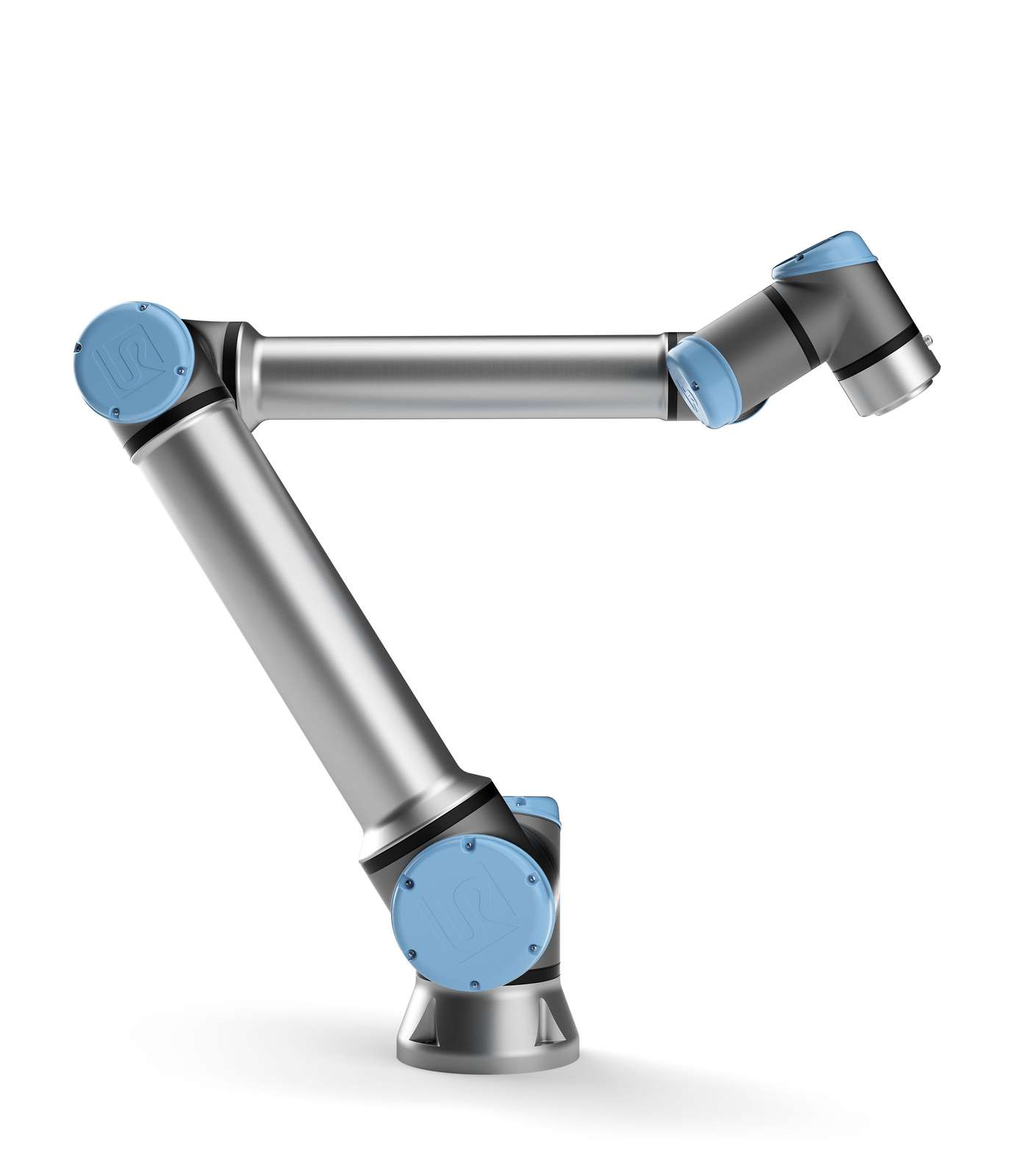

With a reach of 1,300 mm and a payload of 12.5 kg, the UR10e offers the perfect balance of power and flexibility, ideal for assembly work or palletising.

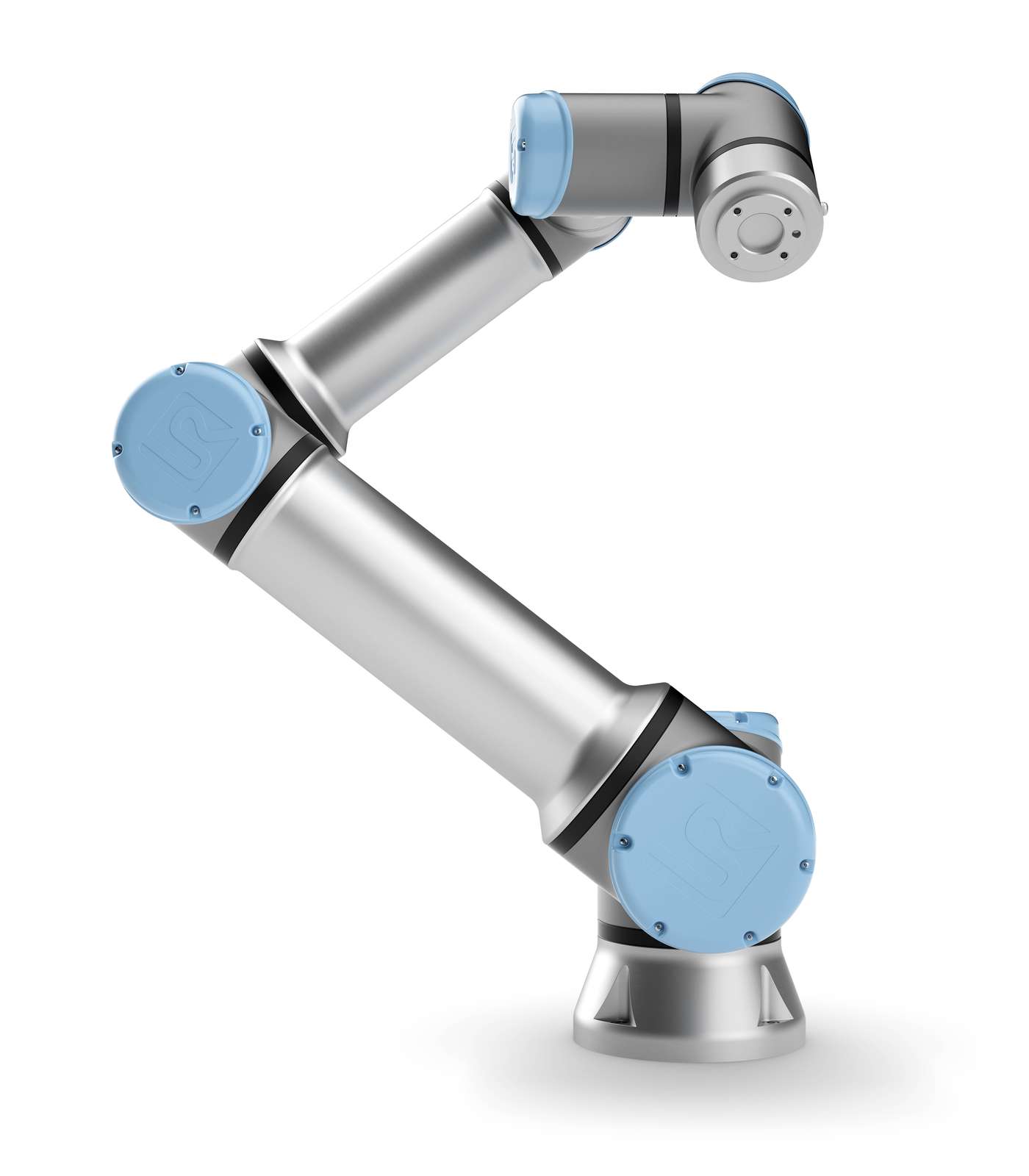

For particularly demanding tasks, the UR16e has a payload of 16 kg with a reach of 900 mm. Perfect for heavy loads and applications that require more load capacity.
1. Maximum efficiency and productivity
The combination of mobility and precision ensures that the ER-Flex optimises work processes in intralogistics and increases productivity. Thanks to its autonomous navigation, it takes over monotonous tasks while employees can concentrate on value-adding activities.
2. Versatility for dynamic requirements
Whether assembly, material handling or testing processes - the ER-Flex can be flexibly adapted to different tasks. Thanks to the use of modular components, it can be expanded at any time.
3. Safety and collaboration
Thanks to advanced safety functions, the ER-Flex can work safely alongside people. It recognises obstacles, adjusts its route and stops automatically when people approach.
4. Cost savings
By automating repetitive tasks and the ability to control multiple workstations, the ER-Flex reduces the need for additional machines or stationary robots.
5. Easy integration
The MiR Mobile Cobot ER-Flex can be easily integrated into existing production lines and logistics processes. It is compatible with common control and ERP systems, which makes implementation much easier.
Foot Print
Loading area
Weight
Maximum payload weight
Maximum speed
Battery life
Protection class
Connectivity
Arm Payload
Arm Reach
2D Laser Sensor
3D Camera
Environment
800 x 580 mm
516 x 560 mm
182 - 195 kg
up to 186 kg
2 m/s
8 Hours
IP21
WiFi
5 kg (UR5e), 12,5 kg (UR10e), 16 kg (UR16e)
850 mm (UR5e), 1.300 mm (UR10e), 900 mm (UR16e)
yes
yes
Inside
Experience the future of intralogistics
The manoeuvrable MiR250 robot is suitable for a wide range of transport tasks. It can drive through doors independently with a maximum load of 250 kg and can use lifts.
to the MiR 250 robot
The hook attachment suitable for MiR250 robots makes it possible to dock onto existing trolleys and transport them by pulling them.
to the MiR Hook 250 robot
Autonomous robot for transporting pallets and heavy loads and a payload of up to 600 kg.
to the MiR600 robot
Autonomous robot for transporting pallets and heavy loads and a payload of up to 1,350 kg.
to the MiR1350 robot
Combination of MiR250 and the Top Roller attachment TR125 from ROEQ. The robot closes gaps between conveyor belt systems.
to the MiR250 Top Roller
Autonomous mobile forklift truck transports pallets up to 1,200 kg.
to the MiR1200 Pallet Jack
With the MiR Mobile Cobot ER-Flex, you get an innovative solution that combines mobility and precision in a unique way. Whether for production lines, logistics centres or other industrial applications - the ER-Flex with ER-ABILITY software sets new standards in automation. Its compatibility with the Universal Robots UR5e, UR10e and UR16e makes it extremely versatile and adaptable to fulfil even the most demanding tasks.
Experience the benefits of flexible automation with the MiR Mobile Cobot ER-Flex. Contact us for a personalised consultation!
