Zebra Connect: The AMR solution with shelf trolleys

Key-Facts

Autonomous movement: independent navigation through the warehouse to the pick-up area

Autonomous transportation: After docking, the robot transports the loaded trolley to its destination and separates autonomously

Powerful performance: automatic picking up and setting down of loads up to 57 kg

Flexible design: height-adjustable and individually configurable

2 to 4-fold KPI improvements and ROI in 6 to 12 months

files/dateien/images/Product%20Icons/Roboter_Cartconnect.png

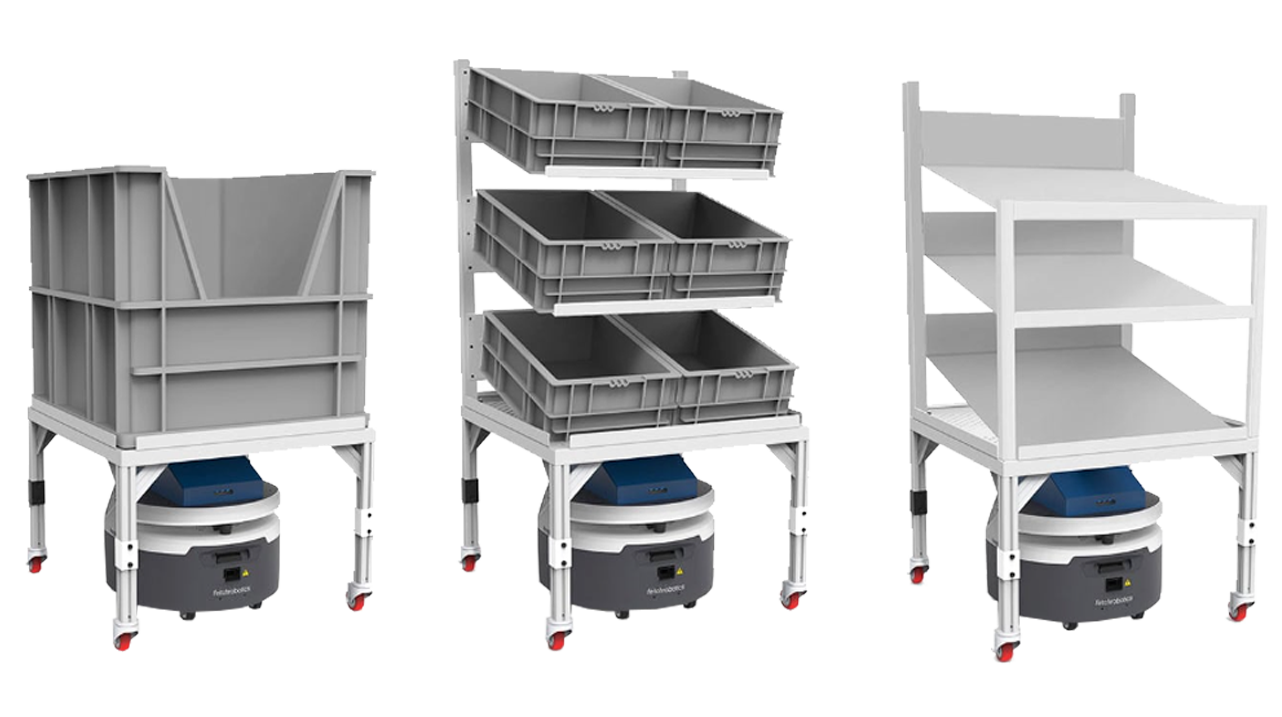

Autonomous mobile robot (AMR) solution with shelf trolleys

The nearest Zebra Connect robot moves autonomously through the warehouse to the desired pick-up area, docks autonomously with the loaded cart (Zebra Cart) without human intervention and transports the picked goods independently to the selected destination. On arrival, Zebra Connect automatically disconnects from the cart and is ready for the next task.

The Zebra Carts are mounted on four castors and can be fully utilized even without a robot. The shelves are height-adjustable and freely configurable. Multiple sensors enable people, forklift trucks and other obstacles in the warehouse to work together safely.

Thanks to the cloud-based Zebra Symmetry app, you can use the Zebra Connect to conveniently carry out work processes or pick-up requests from any web-enabled or integrated device.

Key Workflows

files/dateien/images/L%C3%B6sungen/Icons/kommissionierung.png

Commissioning

The Zebra Connect enables efficient and automated transport of picking trolleys to various destinations in the warehouse

Container picking

The freely configurable Zebra Carts offer flexible customisation options for different containers and boxes

Customised solution

The Zebra Cart module is individually configurable and therefore offers a wide range of customisation options tailored to your needs

Pick-to-tote

The autonomous mobile robot reduces walking distances and saves time

files/dateien/images/L%C3%B6sungen/Icons/recycling.png

Waste removal / recycling

Autonomous navigation enables efficient and automated removal of waste containers to the designated disposal areas

files/dateien/images/L%C3%B6sungen/Icons/materialtransport.png

Material transport / production

The robot automatically connects to loaded trolleys, providing efficient and automated transport of materials

Technical specifications

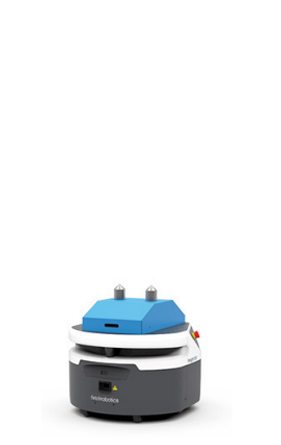

Zebra Connect

Weight

Height

Base Footprint

Shelf width

Shelf depth

Max. payload weight

Max. Speed

Turning radius

Runtime

Environment

Recharging

Charging time

2D laser camera

3D camera

Zebra Connect

74 kg

49.6 cm

52.7 cm | 57.3 cm diameter

1,5 m/s

Turn in place

approx. 9 hrs.

Indoor use

Autonomous docking

3 hours for 90%

25m / 220°

Technical specifications

Weight

Height

Base Footprint

Shelf width

Shelf depth

Max. payload weight

Max. Speed

Turning radius

Runtime

Environment

Recharging

Charging time

2D laser camera

3D camera

files/dateien/images/Produkte/Zebra%20Robotics%20Automation/CartConnect/FetchCart_Base.png

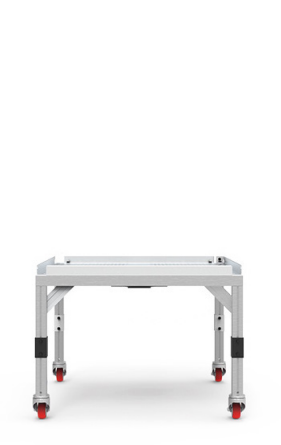

Zebra Cart Base

38.5 kg

62.3 cm

83 x 83 cm

83 cm

Up to 52 kg

Turn in place

Indoor area

files/dateien/images/Produkte/Zebra%20Robotics%20Automation/CartConnect/FetchCart.png

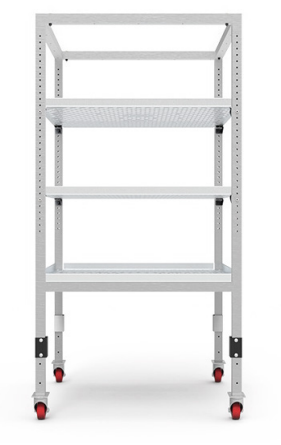

Zebra Cart

34 kg

140 cm

83 x 83 cm

83 cm

Up to 57 kg

Turn in place

Indoor Use

files/dateien/images/Produkte/Zebra%20Robotics%20Automation/CartConnect/FetchCart_tall.png

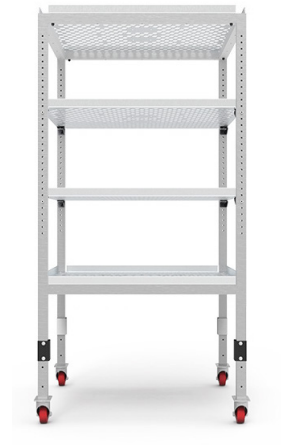

Zebra Cart Tall

38.5 kg

165 cm

83 x 83 cm

83 cm

Up to 52.5 kg

Turn in place

Indoor use
