Help with picking through AMR

Zebra Flex Guide

files/dateien/images/Partner%20Logos/Favicon_RGB.png
files/dateien/images/Product%20Icons/Product%20Icons%20Slider/log-robot_ZebraFlexGuide_Gruppe.png

Zebra Flex Guide: Efficient warehouse automation with intelligent design

Key-Facts

Interactive operation: touchscreens, barcode scanner and NFC reader for quick login

Efficient navigation: LED light bars guide you to the target stock. Display of priorities

Flexible loading and unloading: Open shelf design for loading and unloading on both sides

Customizable shelving system: Flexible storage system with adjustable shelves

Versatile connection options: Integrated USB hub with up to 4 ports

Zebra Flex Guide robot

Efficient order picking and precise order processing

The Zebra Flex Guide robot offers up to two interactive touchscreens, a barcode scanner and an NFC reader for fast, contactless registration. The highlight of the driverless transport system is the integrated LED light bars in the shelf supports, which guide staff to the correct side of the aisle for the target stock and indicate the priority of the removal process. The innovative LEDs also act as 'put-to-light' illumination, increasing the accuracy of order processing for each customer.

The open shelf design allows loading and unloading on both sides of the robot. It also enables two-sided picking for two pickers or one picker with robot rotation. The integrated USB hub has 4 ports and enables easy connection of your own peripheral devices, such as printers, which supports flexibility and adaptability in the work processes.

The flexible storage system also offers adjustable shelves. This allows the shelving system to be flexibly adapted to different combinations of containers, crates and boxes. This not only creates more capacity, but also makes it possible to meet different requirements in the warehouse.

Contact us now

Key Workflows

files/dateien/images/L%C3%B6sungen/Icons/kommissionierung.png

Order picking

Thanks to the open shelf design, the Zebra Flex Guide offers the ideal solution for efficient and flexible picking processes

files/dateien/images/L%C3%B6sungen/Icons/picking.png

Picking

The integrated LED light bars guide staff precisely to the storage compartments, optimize the removal process and increase order accuracy

files/dateien/images/L%C3%B6sungen/Icons/materialtransport.png

Material transportation / production

The movable shelves offer flexible adjustment options for different containers and boxes

files/dateien/images/L%C3%B6sungen/Icons/pick-to-tote.png

Pick-to-tote

The autonomous mobile robot reduces walking distances and saves time

Technical specifications

2D laser sensor

3D depth camera

Run / Stops

Robot visibility

Maximum speed

Turning radius

Audio

WiFi

Zebra OEM Base connections

Temperature range in operation

Humidity range

Environment

Maximum accessible step/edge

Maximum gradient

Maximum traversable floor gap

Minimum aisle width

files/dateien/images/Produkte/Zebra%20Robotics%20Automation/FlexShelf/Zebra_Flex_Guide.png

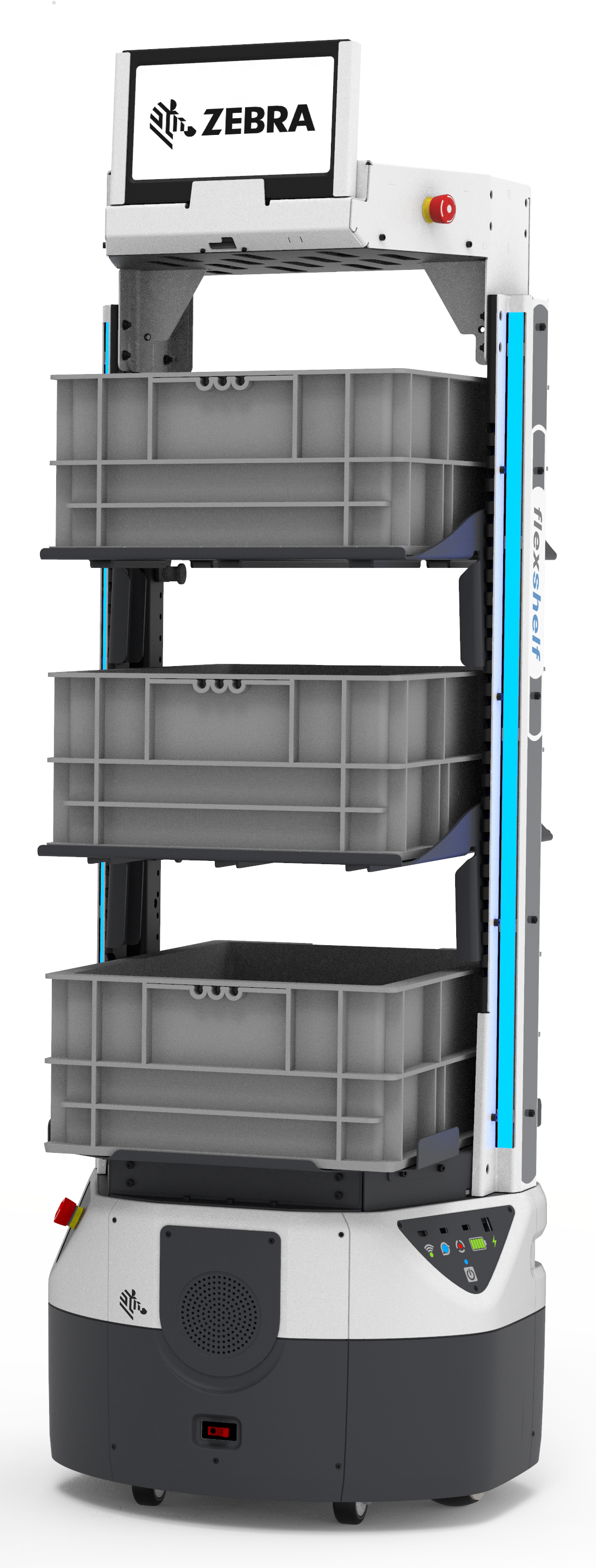

Zebra Flex Guide

SICK, 25m, 220°

2x

3x

Floor-lit LED and side LED strips on posts

1.75m/s

Turning in place

4x speakers, 10 watts per channel

Intel AX200 802.11.ax

1x – DisplayPort | 2x – USB-A 3.0 | 1x – Ethernet port

0°C to 40°C

5% to 95% (non-condensing)

Indoor use

1.27 cm step

Up to 3% gradient

1.5 cm

Fulfillment mode: 183 cm | Non-Fulfillment mode: 190 cm

files/dateien/images/Produkte/Zebra%20Robotics%20Automation/FlexShelf/Zebra_Flex_Guide_Dual.png

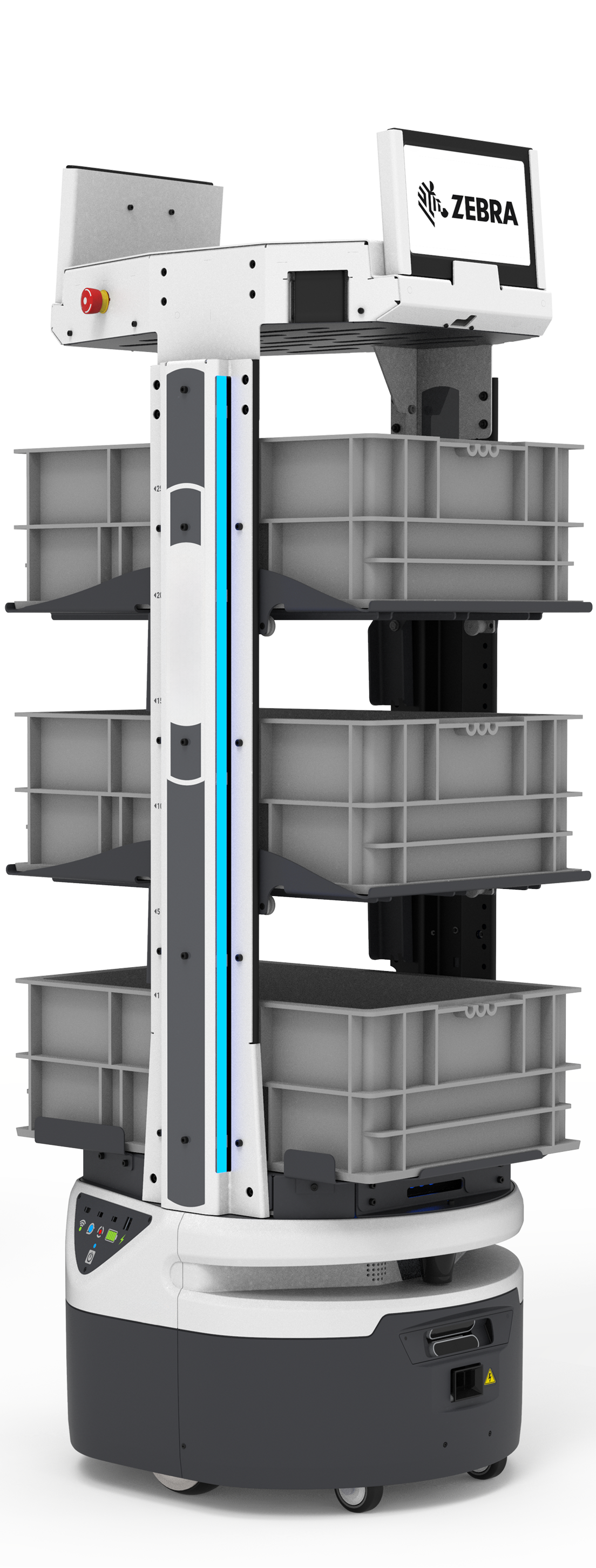

Zebra Flex Guide Dual

SICK, 25m, 220°

2x

3x

Floor-lit LED and side LED strips on posts

1.75m/s

Turning in place

4x speakers, 10 watts per channel

Intel AX200 802.11.ax

1x – DisplayPort | 2x – USB-A 3.0 | 1x – Ethernet port

0°C to 40°C

5% to 95% (non-condensing)

Indoor use

1.27 cm step

Up to 3% gradient

1.5 cm

Fulfillment mode: 183 cm | Non-Fulfillment mode: 190 cm

Discover our other AMR solutions from Zebra Robotics Automation

Zebra Shelf robot

Zebra Shelf

Mobile shelving with adjustable shelves for transporting materials between storage, work and despatch areas.

to the Zebra Shelf robot
Zebra Connect robot

Zebra Connect

Autonomous robot trolley, specially designed for use in warehouses, factories and other industrial environments

to the Zebra Connect robot
Zebra Roller robot

Zebra Roller

For automated loading and unloading of conveyor belts and retrieval machines

to the Zebra Roller robot
